5ft X 5ft S-Style Single Ladder Scaffold Frame Set

The 5ft X 5ft S-Style Single Ladder Scaffold Frame Set is a versatile and fundamental component for building supported scaffolding towers. These ladder frames feature a reliable Safeway (S-Style) design. Therefore, they are compatible with many common components and accessories. The frames measure 5 feet wide and 5 feet high. They are constructed with 1-11/16 inch diameter legs and a durable 0.095 inch wall thickness.

This S-Style single ladder frame set utilizes a strong powder-coat blue finish for maximum durability and corrosion resistance. The design includes rungs on one side, which allows workers to climb the structure easily during assembly. However, you must attach a separate ladder when climbing over 6 feet to meet OSHA standards for safe access. This requirement makes external ladders necessary for elevated platforms. Consequently, this S-Style single ladder frame set is highly versatile and is used for nearly every type of scaffolding application across construction trades.

Specifications

• Dimensions: 5 feet wide by 5 feet high
• Frame Leg: 1-11/16 inch diameter
• Wall Thickness: 0.095 inches
• Lock Type: Drop Lock (Top lock 8-1/2 inches)
• Finish: Powder Coat Blue
• Style: Safeway (S-Style) Frame
• Drilled Hole: 45 degrees

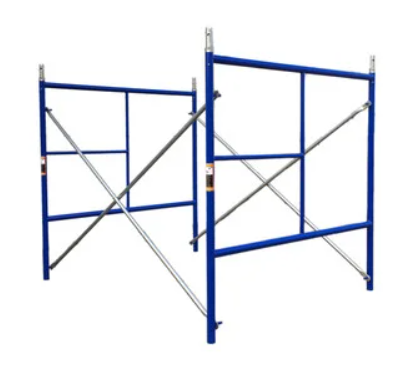

Set Includes

• Scaffolding Frames: 2
• Cross Braces: 2
• Coupling Pins: 4
• Spring Clips: 4
